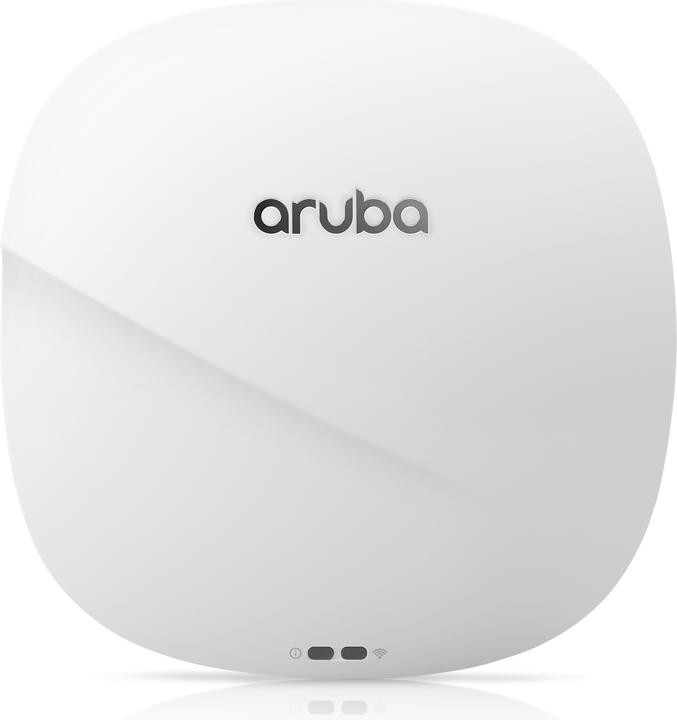

Aruba AP‑345 Unified Indoor Wireless Access Point
The HPE Aruba JZ031A is the part number for the Aruba AP‑345 (RW) — a high‑performance enterprise indoor wireless access point from Aruba’s 340 Series. This model delivers robust 802.11ac Wave 2 Wi‑Fi, with dual radios and 4×4 MU‑MIMO, designed to support high‑density environments such as large offices, campuses, hotels, and conference spaces where throughput and client scalability are critical.
It features Multi‑Gigabit Ethernet (SmartRate) uplink to eliminate wired bottlenecks, integrated Bluetooth Low Energy (BLE) for location services and IoT integration, and can be deployed in either controller‑based (ArubaOS) or controller‑less (Instant/Aruba Instant) modes.
Model Type
Indoor Dual‑Band Enterprise Wireless Access Point (802.11ac Wave 2)
Category
Networking – Enterprise Indoor Wi‑Fi Infrastructure
Key Features
802.11ac Wave 2 Dual‑Band Wi‑Fi — Simultaneous 2.4 GHz and 5 GHz operation with high throughput and improved client capacity.
4×4 MU‑MIMO Radios — Four spatial streams per radio increase performance and multi‑client efficiency.
SmartRate Multi‑Gigabit Ethernet — Includes a 2.5 GbE uplink port plus an additional Gigabit Ethernet port for flexible connectivity.
Integrated Bluetooth Low Energy (BLE) — Enables Aruba Beacon and location‑based services for asset tracking and engagement.
Unified AP Deployment — Supports ArubaOS controller‑based configurations or Aruba Instant controller‑less mode.
Advanced RF & Security Features — Adaptive Radio Management, AirMonitor, client optimization, and enterprise Wi‑Fi protections.
PoE Powered — Supports PoE (802.3af/at), reducing cabling requirements.
Technical Specs at a Glance
| Specification | Details |
|---|---|
| Model | Aruba AP‑345 (RW) Unified AP |
| Part Number | JZ031A |
| Wireless Standards | IEEE 802.11a/b/g/n/ac Wave 2 |
| Bands | Dual‑band 2.4 GHz & 5 GHz |
| Max Wireless Data Rate | Up to ~800 Mbps (2.4 GHz) + ~2,166 Mbps (5 GHz) — ~3 0–4.3 Gbps combined depending on configuration |
| MIMO | 4×4:4 MU‑MIMO per radio |
| Antennas | 8 × Internal omni‑directional |
| Ethernet Ports | 1 × 2.5 GbE (SmartRate), 1 × Gigabit RJ‑45 |
| BLE | Yes |
| Power | PoE (802.3af/at) or optional DC |
| Mounting | Ceiling / wall mount |
| Management | ArubaOS or Aruba Instant / Aruba Central |
Note: Peak data aggregate depends on radio mode (dual‑band vs dual‑5 GHz).
Typical Use Cases
Enterprise Office Connectivity — High‑density client support and robust Wi‑Fi throughput.
Campus & Large Indoor Spaces — Ideal for meeting rooms, auditoriums, and shared areas.
Retail & Hospitality Networks — Supports guest Wi‑Fi, point‑of‑sale, and mobile engagement.
Location Services & IoT Integrations — BLE supports tracking and proximity services.
