Compact Managed PoE+ Power with Flexible Uplinks — Cisco CBS350‑8FP‑E‑2G‑CN delivers enterprise‑grade switching, advanced security, and basic routing wrapped in a quiet, small‑business‑ready package.
Product Description

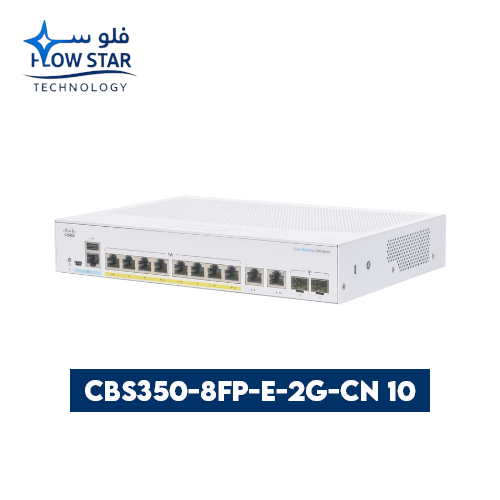

The Cisco CBS350‑8FP‑E‑2G‑CN is a managed Gigabit Ethernet switch in Cisco’s Business 350 Series, ideal for small to medium business networks that need reliable PoE+ power and advanced features in a compact form. It includes 8 PoE+ Gigabit ports with a 120 W PoE budget, enabling power delivery over Ethernet to access devices such as IP phones, wireless APs, and security cameras. Two Gigabit copper/SFP combo uplinks provide flexible connectivity to network cores or aggregation layers.
Model Type: Managed Gigabit Ethernet Switch (Layer 2 + Basic Layer 3)
Category: Cisco Business 350 Series Small Business PoE+ Switch
Key Features
• 8 × 10/100/1000 Mbps Gigabit PoE+ Ports – Eight copper RJ‑45 ports that support IEEE 802.3af/at PoE+, delivering up to a 120 W total PoE power budget to power IP telephones, wireless access points, cameras, and other PoE devices without external injectors.
• 2 × Gigabit Combo Uplink Ports (RJ‑45/SFP) – Dual flexible uplinks that can be used as copper or fiber SFP connections for backbone or long‑distance links.
• Wire‑Speed Switching Performance – 20 Gbps switching capacity with a forwarding rate of 14.88 Mpps (64‑byte packets) for smooth traffic handling in small business environments.
• Layer 2 + Basic Layer 3 Capabilities – Supports VLANs, static IPv4/IPv6 routing, RIP v2, Policy‑Based Routing (PBR), inter‑VLAN routing, and enhanced segmentation features.
• Advanced Security & Traffic Management – Includes IEEE 802.1X authentication, DHCP snooping, IP Source Guard, dynamic ARP inspection, ACLs, multicast support, and QoS for priority traffic handling.
• Flexible Management Options – Manage via Cisco Business Dashboard, intuitive web GUI, command‑line interface (CLI), and SNMP for comprehensive configuration, monitoring, and troubleshooting.
• Fanless & Quiet Operation – Fanless design makes the switch suitable for quiet office and workspace environments.
• Rack‑Mountable Form Factor – Compact, 1U rack‑mountable design fits in wiring closets and small network cabinets.
Technical Specs at a Glance
| Specification | Details |
|---|---|
| Ports | 8 × Gigabit PoE+ + 2 × Gigabit uplink combo (copper/SFP) |
| PoE Power Budget | ~120 W total |
| Switching Capacity | 20 Gbps |
| Forwarding Rate | 14.88 Mpps |
| Layer 3 Features | Static IPv4/IPv6 routing, RIP v2, PBR |
| VLAN Support | Up to 4,094 VLANs |
| MAC Address Table | ~16,000 entries |
| Packet Buffer | ~1.5 MB |
| Memory | 512 MB DRAM + 256 MB Flash |
| Management | Web UI, CLI, SNMP, Cisco Business Dashboard |
| Energy Efficiency | IEEE 802.3az compliant |
| Dimensions | ~268 × 185 × 44 mm (10.56 × 7.28 × 1.73 in) |
| Weight | ~1.1 kg |
| Operating Temp | ~0 °C to 50 °C |
Typical Use Cases
• Small office or branch office network access layer with PoE requirements (VoIP, wireless, cameras).
• Managed deployments needing VLAN segmentation and inter‑VLAN routing.
• Uplinks to core switches or routers using flexible copper/fiber combo ports.
• Quiet office environments requiring silent operation.
