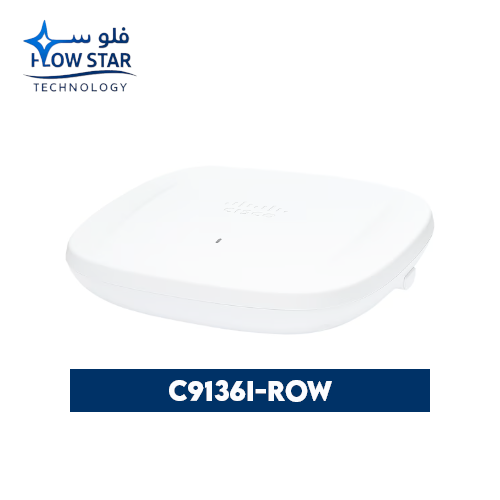

Cisco C9136I‑ROW delivers enterprise‑grade Wi‑Fi 6E performance with tri‑band MIMO, multigigabit uplinks, BLE support, and advanced IOS XE capabilities — ideal for dense indoor deployments requiring high throughput, reliability, and future‑ready connectivity
Model Type: Enterprise Indoor Wi‑Fi 6E Wireless Access Point
Series: Cisco Catalyst 9136 Series (Internal Antennas; ROW regulatory domain)
Key Features
• Tri‑Band Wi‑Fi 6E (802.11ax) Support – Delivers next‑generation wireless across 2.4 GHz, 5 GHz, and 6 GHz bands with expanded spectrum for faster speeds and lower latency — ideal for high‑density enterprise environments.
• High Aggregate Throughput – Up to 10.2 Gbps PHY throughput leveraging simultaneous multi‑band radios and wide channel support (up to 160 MHz) for bandwidth‑intensive applications.
• Advanced MIMO & OFDMA –
• 8×8 MU‑MIMO on 5 GHz for eight spatial streams
• 4×4 MU‑MIMO on 2.4 GHz and 6 GHz
• OFDMA, BSS Coloring, TWT to improve network efficiency and reduce contention in dense deployments.
• Multigigabit Wired Uplinks – Two multigigabit Ethernet (RJ‑45) ports supporting up to 5 Gbps each for high‑speed wired backhaul and redundancy.
• Internal Omni‑Directional Antennas – Integrated antennas tuned for 2.4 GHz (~4 dBi), 5 GHz (~5 dBi), and 6 GHz (~6 dBi) for broad coverage in indoor spaces.
• Cisco IOS XE Software – Runs on Cisco’s modern IOS XE platform, supporting advanced RF intelligence, controller integration, and programmability.
• Bluetooth Low Energy (BLE) Radio – Integrated BLE capability for location services, IoT onboarding, and asset tracking.
• Flexible Power Options – Supports 802.3bt Cisco Universal PoE (UPOE) and 802.3at PoE+ (with reduced performance), with optional Cisco injector (e.g., AIR‑PWRINJ7=).
• Enterprise‑Grade Security – WPA3 and robust enterprise authentication ensure secure access; supports controller‑based policies and segmentation.
Technical Specs at a Glance
| Specification | Details |
|---|---|
| Wireless Standard | IEEE 802.11ax (Wi‑Fi 6E) |
| Bands Supported | 2.4 GHz, 5 GHz, 6 GHz |
| Max Aggregate Throughput | Up to 10.2 Gbps |
| Spatial Streams | 8×8 (5 GHz), 4×4 (2.4 GHz & 6 GHz) |
| Ethernet Ports | 2 × Multigigabit RJ‑45 (up to 5 Gbps) |
| Management Port | 1 × RJ‑45 Console |
| USB | 1 × USB 2.0 (9 W) |
| Antenna | Internal, omnidirectional |
| Memory | 2048 MB DRAM, 1024 MB flash |
| Supported Controllers | Cisco Catalyst 9800 Series controllers (physical/virtual) |
| Power | 802.3bt UPOE, 802.3at PoE+ (limited radio use) |
| Dimensions | ~25.1 × 25.1 × 5.6 cm |
| Weight | ~1.65 kg |
| Operating Temp | 0 °C to 50 °C |
| Regulatory Domain | ROW (Rest of World) model |
Typical Use Cases
• Enterprise Indoor Wireless Access — Offices, campuses, hospitality, and retail spaces needing high‑capacity Wi‑Fi 6E connectivity.
• High‑Density Environments — Supports large client populations with enhanced spectral efficiency and simultaneous connections.
• IoT & Location Services — BLE integration for analytics, asset tracking, and proximity services.
• High‑Bandwidth Applications — Video conferencing, large file transfers, and low‑latency services across all bands.
