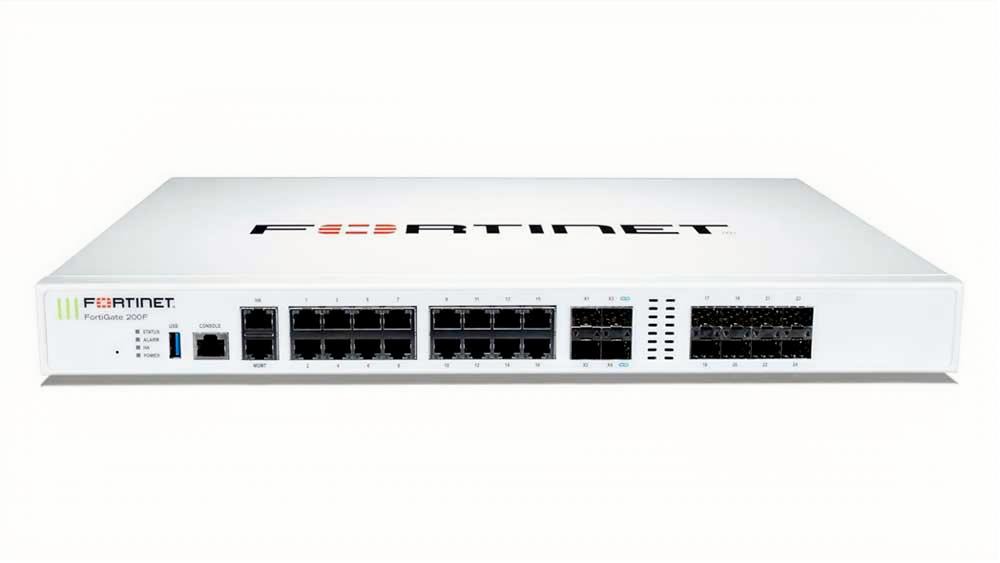

Fortinet FortiGate FG-200F-BDL-950-12

The FortiGate FG-200F-BDL-950-12 is a high-performance next-generation firewall (NGFW) from the FortiGate 200F series, bundled with 1-year FortiGuard Unified Threat Protection (UTP) and FortiCare support. Designed for mid-sized enterprises, branch offices, and campus edge deployments, it delivers advanced security services, SD-WAN, and application visibility with ASIC-accelerated performance.

🔹 Product Description

• Model Number: FG-200F-BDL-950-12

• Series: FortiGate 200F Series

• Type: Next-Generation Firewall (NGFW) Appliance

• License Bundle: Includes 1-Year FortiGuard UTP + FortiCare support

• Form Factor: 1U rack-mountable appliance

The FortiGate 200F provides:
✅ 20 Gbps firewall throughput with dedicated ASIC acceleration.
✅ Advanced security services: IPS, antivirus, application control, web filtering, and SSL inspection.
✅ Flexible connectivity: 18 × RJ-45, 8 × SFP, 4 × 10GE SFP+ ports.
✅ Enterprise SD-WAN support, routing, and segmentation for secure hybrid WAN.
✅ High availability (HA) support for active-active or active-passive redundancy.

🔹 Technical Specifications

Hardware

• Firewall Throughput: 20 Gbps

• Threat Protection (UTM) Throughput: ~3.5 Gbps

• IPS Throughput: ~5 Gbps

• SSL Inspection Throughput: ~4 Gbps

• IPSec VPN Throughput: ~18 Gbps

• Concurrent Sessions: Up to 4 million

• New Sessions per Second: 800,000

• Interfaces:

  • 18 × GE RJ-45 ports (LAN/WAN/DMZ/HA)

  • 8 × GE SFP slots

  • 4 × 10GE SFP+ slots

  • 2 × dedicated HA ports

  • 1 × RJ-45 management port

  • 1 × console port

• Hardware Acceleration: Fortinet NP6XLite and CP9 security processors

• Memory / Storage: 4 GB RAM, onboard flash storage

• Dimensions: 1U rackmount, ~17.2 × 13.6 × 1.7 in

• Weight: ~13 lbs (6 kg)

Software & Features

• Operating System: FortiOS (latest release supported)

• Security Services (with UTP license):

  • Intrusion Prevention System (IPS)

  • Application Control

  • Web Filtering

  • Antivirus / Anti-malware

  • DNS & URL filtering

  • SSL/TLS deep inspection

• VPN:

  • IPSec VPN (18 Gbps aggregate throughput)

  • SSL VPN (scalable to thousands of users)

• SD-WAN:

  • Dynamic WAN path selection

  • Application-aware routing

  • Bandwidth management and SLA enforcement

• Networking:

  • Full Layer 3 routing (OSPF, BGP, RIP, static routes)

  • VLANs, policy-based routing

  • IPv4 and IPv6 support

  • Segmentation with virtual domains (VDOMs)

• High Availability: Active-active, active-passive clustering

• Management:

  • Web UI, CLI, REST API, SNMP

  • FortiManager (centralized management)

  • FortiAnalyzer (logging & reporting)

🔹 Key Benefits

• High Performance Security: ASIC-accelerated firewalling and SSL inspection.

• Consolidated Services: NGFW, IPS, antivirus, web filtering, and VPN in a single device.

• Flexible Deployment: Rich mix of RJ-45, SFP, and 10GE SFP+ ports.

• Enterprise-grade SD-WAN: Optimized and secure hybrid WAN connectivity.

• Scalable & Reliable: Supports HA clustering for redundancy.

• Cost-effective Security Bundle: Includes 1-year FortiGuard UTP and FortiCare support.

🔹 Pros & Cons

✅ Pros

• Very high throughput with ASIC acceleration.

• Strong SSL/TLS inspection performance compared to many competitors.

• Wide interface options (copper, fiber, 10GE uplinks).

• Rich security ecosystem (UTP + centralized management tools).

• Flexible HA and SD-WAN features.

❌ Cons

• Performance drops when all security services (especially SSL inspection) are enabled.

• FortiGuard licensing renewals can be costly.

• Learning curve for FortiOS features and policies.

• May not scale for very large enterprise cores (better suited for branch/mid-size sites).
