93240YC-FX2Switches

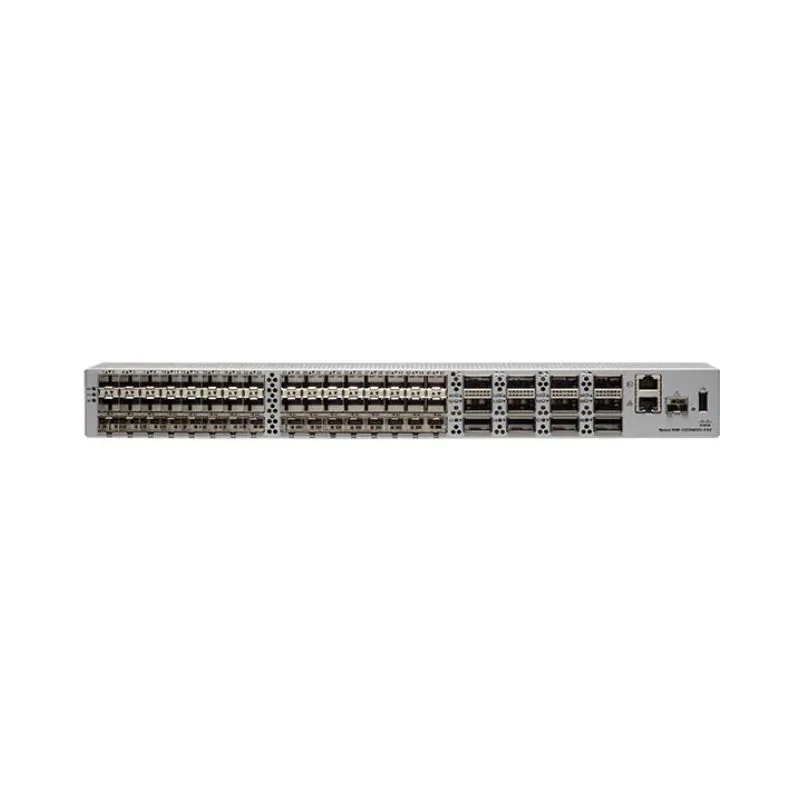

The Cisco Nexus 93240YC-FX2 is a fixed-port, high-density switch designed for deployment in data centers and enterprise networks. It supports both Cisco ACI (Application Centric Infrastructure) and NX-OS modes, providing flexibility for various network architectures.

🔧 Technical Specifications

• Form Factor: 1.2RU rack-mountable

• Ports:

  • 48 x 1/10/25-Gbps SFP+ fiber ports

  • 12 x 40/100-Gbps QSFP28 ports

• Switching Capacity: 4.8 Tbps

• Forwarding Rate: Over 2.5 bpps

• System Buffer: 40 MB intelligent system buffer

• Management Ports: 1 x RJ-45, 1 x SFP

• USB Ports: 1 x USB 3.0

• Serial Ports: 1 x RS-232

• Power Supplies:

  • Up to 2 x 750W AC or 1100W DC

• Power Consumption:

  • Typical: 250W

  • Maximum: 500W

• Cooling: Fixed redundant fans

• Dimensions: 17.3 x 23.3 x 2.1 inches (43.9 x 59.1 x 5.3 cm)

• Weight: 22 lbs (10 kg)

• Operating Temperature: 32°F to 104°F (0°C to 40°C)

• Relative Humidity: 5% to 95% (non-condensing)

✅ Key Features

• High-Density Ports: Offers 48 x 1/10/25G SFP+ downlink ports and 12 x 40/100G QSFP28 uplink ports, providing flexible connectivity options.

• High Performance: Delivers a switching capacity of 4.8 Tbps and a forwarding rate of over 2.5 bpps, ensuring efficient data handling.

• Advanced Buffering: Equipped with a 40 MB intelligent system buffer to manage traffic bursts and enhance performance.

• Flexible Power Options: Supports dual power supplies with AC and DC options for redundancy and reliability.

• Comprehensive Management: Includes multiple management ports and USB interfaces for easy configuration and monitoring.
