Nexus 9500 Modular Data Center Switch Chassis
Product Description

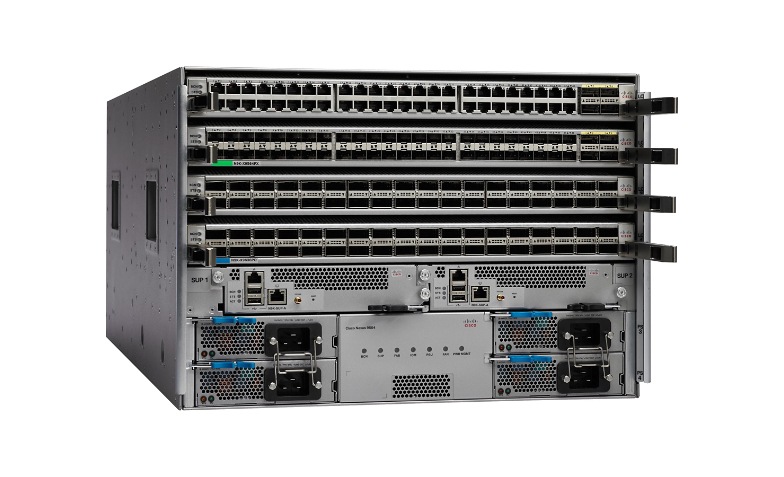

The Cisco N9K-C9504-B3 is a high-performance modular switch chassis from the Cisco Nexus 9500 Series, engineered for large-scale data centers requiring extreme scalability, redundancy, and fabric-level performance.
Designed for spine, aggregation, and core deployments, the 9504 chassis provides a flexible modular architecture supporting multiple line cards, supervisors, and fabric modules. This enables organizations to scale port density and bandwidth as network demands grow, while maintaining low latency and high reliability.
Supporting Cisco NX-OS and Cisco ACI modes, the platform enables automation, policy-driven networking, and deep telemetry, making it ideal for cloud providers, enterprise data centers, and service-provider infrastructures.
Model Type
Modular Data Center Switch Chassis — Up to 4 Line Cards
Category
Networking – Modular Data Center / Cloud Ethernet Switch
Key Features
Modular Spine/Core Architecture — Supports scalable deployment with interchangeable line cards, fabric modules, and supervisors.
High Switching Capacity — Provides multi-terabit throughput suitable for hyperscale and enterprise data center fabrics.
Flexible Interface Support — Compatible with 1G, 10G, 25G, 40G, 100G, and higher-speed Ethernet modules depending on installed line cards.
NX-OS & ACI Ready — Enables policy-based automation, telemetry, and programmable networking fabrics.
High Availability Design — Supports redundant supervisors, fabric modules, power supplies, and fans for continuous operation.
Cloud-Scale Fabric Support — Ideal for spine layers, aggregation cores, and high-density enterprise or service-provider deployments.
Technical Specs at a Glance
| Specification | Details |
|---|---|
| Model | Cisco N9K-C9504-B3 |
| Series | Nexus 9500 |
| Chassis Type | Modular switch chassis |
| Line Card Slots | Up to 4 |
| Switching Capacity | Up to ~30 Tbps (depending on configuration) |
| Supported Speeds | 1G / 10G / 25G / 40G / 100G+ |
| Software | Cisco NX-OS / ACI support |
| Form Factor | 7RU rack-mount chassis |
| Redundancy | N+1 power, fabric, and supervisors supported |
| Use Case | Spine, aggregation, or core data center fabric |
Typical Use Cases
Spine Layer in Leaf-Spine Fabrics — Provides scalable backbone connectivity for large data centers.
Enterprise or Cloud Core Switching — Handles high-throughput east-west traffic across applications and storage.
Service Provider Fabric Nodes — Supports multi-tenant environments with high resiliency and automation.
High-Density Aggregation Layer — Consolidates traffic from multiple access or leaf switches.
