Cloud-Managed 802.11ac Wave 2 Indoor Access Point
Product Description
The Cisco Meraki MR52-HW is a high-performance indoor enterprise access point designed for modern cloud-managed wireless networks. Built on the 802.11ac Wave 2 standard, it delivers strong throughput, multi-user efficiency, and enterprise-grade security, making it ideal for offices, campuses, retail environments, and high-density deployments.
The MR52 features a quad-radio architecture, including dedicated radios for client access, RF monitoring, and Bluetooth services. Combined with Meraki’s cloud dashboard, it enables simplified deployment, remote management, and real-time visibility across networks.
Model Type
Indoor Dual-Band Cloud-Managed Access Point
Category
Networking – Enterprise Wireless Infrastructure
Key Features
802.11ac Wave 2 Performance — Dual-band Wi-Fi with MU-MIMO improves throughput and allows multiple clients to transmit simultaneously.
High Aggregate Data Rate — Up to approximately 2.5 Gbps combined throughput across 2.4 GHz and 5 GHz radios.
Quad-Radio Architecture
• 2.4 GHz client radio
• 5 GHz client radio
• Dedicated WIDS/WIPS & spectrum radio
• Bluetooth Low Energy radio for beaconing and analytics
Integrated Enterprise Security — Includes Layer-7 firewall, rogue AP detection, secure roaming, and enterprise authentication support.
Cloud-Based Management — Fully managed through the Meraki dashboard for zero-touch provisioning, monitoring, and firmware updates.
Flexible Power Options — Powered via PoE (802.3at) or optional DC adapter.
High-Density Ready — 4×4 MU-MIMO radios and beamforming help support many concurrent users in demanding environments.
Technical Specs at a Glance
| Specification | Details |
|---|---|
| Model | Cisco Meraki MR52-HW |
| Wi-Fi Standard | IEEE 802.11ac Wave 2 |
| Radios | Quad-radio architecture |
| Spatial Streams | 4×4 MU-MIMO |
| Max Data Rate | ~2.5 Gbps aggregate |
| Ethernet | 2× 1 GbE RJ-45 |
| Antennas | Integrated omnidirectional |
| Bluetooth | BLE radio integrated |
| Power | 802.3at PoE or DC adapter |

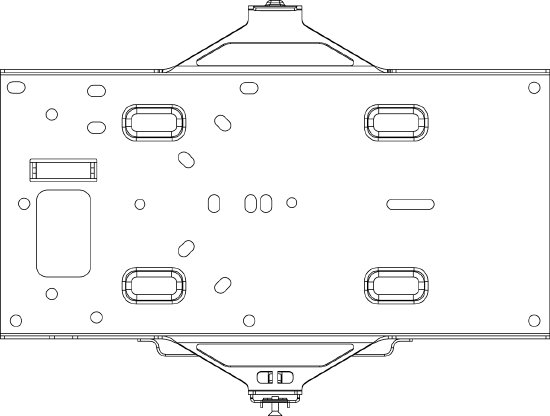

| Mounting | Ceiling / wall mounting supported |
| Weight | ~820 g |
(Data compiled from multiple vendor and specification sources.)
Typical Use Cases
Enterprise Offices — Reliable Wi-Fi coverage with centralized cloud management.
Education & Campus — Supports dense user environments and media-rich learning.
Retail & Hospitality — Enables guest Wi-Fi, analytics, and IoT integrations.
Healthcare & Public Spaces — Secure connectivity and location services.
