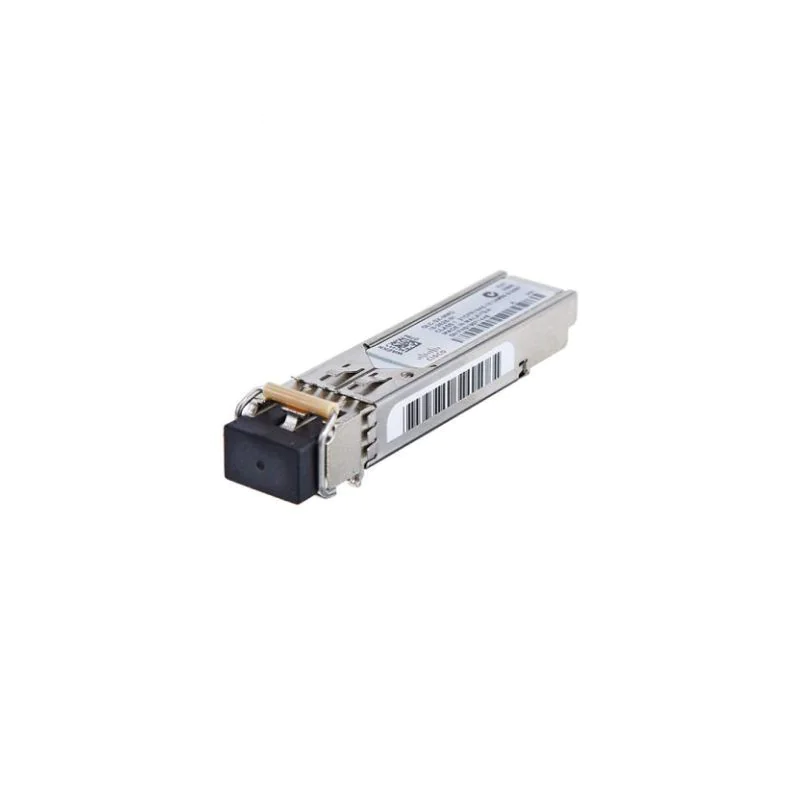

The Cisco GLC-SX-MMD is a hot-swappable, small form-factor pluggable (SFP) transceiver that delivers reliable 1 Gbps connectivity over multimode fiber (MMF). Featuring Digital Optical Monitoring (DOM), this module allows real-time monitoring of critical parameters such as optical output power, input power, temperature, laser bias current, and supply voltage.

It is an enhanced version of the GLC-SX-MM, offering extended diagnostics while maintaining full compatibility with Cisco networking devices.

🔧 Technical Specifications

• Model: GLC-SX-MMD

• Type: Gigabit SFP transceiver

• Standard: IEEE 802.3z 1000BASE-SX

• Data Rate: 1 Gbps

• Wavelength: 850 nm

• Fiber Type: Multimode Fiber (MMF)

• Max Distance:

  • Up to 550m on OM2 (50 µm MMF)

  • Up to 220m on OM1 (62.5 µm MMF)

• Connector: LC duplex

• Digital Optical Monitoring (DOM): Supported

• Hot-Swappable: Yes

• Operating Temperature: 0°C to 70°C (32°F to 158°F)

• Compatibility: Cisco Catalyst, Nexus, and other Cisco networking platforms

✅ Key Features

• Provides low-cost Gigabit connectivity over MMF

• DOM support for real-time diagnostics and proactive monitoring

• Backward compatible with GLC-SX-MM

• Compact and hot-swappable design for easy deployment

• Compatible with a wide range of Cisco switches and routers
