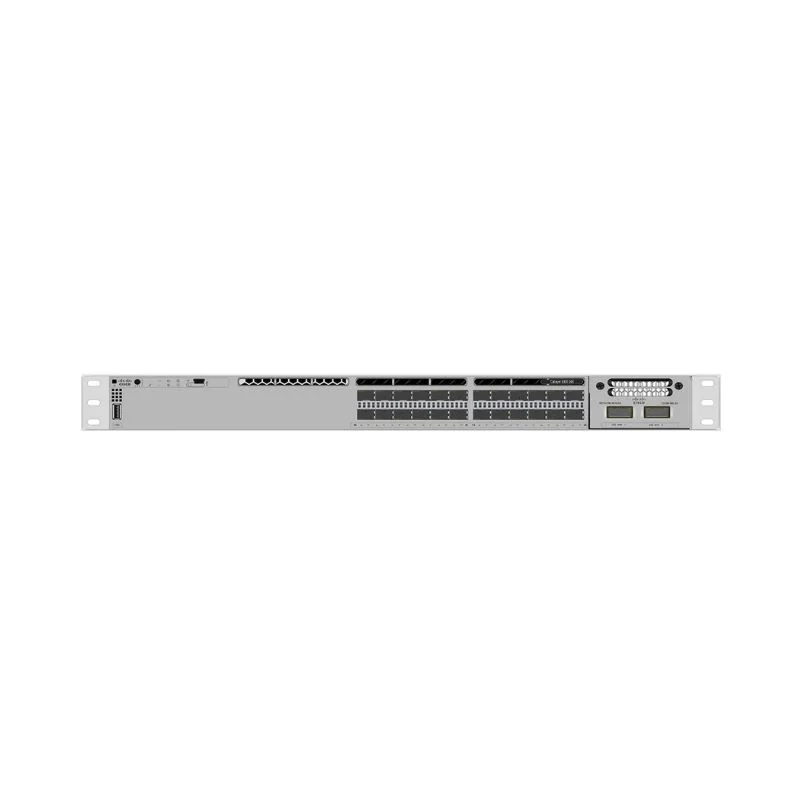

C9300-24S-ESwitches

The Cisco Catalyst C9300-24S-E is part of the Catalyst 9300 Series, designed for high-performance, secure, and scalable network access in enterprise environments. It provides flexibility for modular uplinks, high stacking bandwidth, and advanced network management, making it suitable for campus and branch deployments.

🔧 Technical Specifications

• Model: C9300-24S-E

• Ports:

  • 24 × 1G SFP (fiber)

  • Modular uplink slots supporting 10G, 25G, or 40G SFP+ / QSFP+ modules

• Stacking: Up to 8 switches via Cisco StackWise-480 technology (480 Gbps stacking bandwidth)

• PoE/PoE+: Not supported on SFP ports

• Switching Capacity: 160 Gbps

• Forwarding Rate: 95.2 Mpps

• DRAM: 4 GB

• Flash Memory: 16 GB

• Software: Cisco IOS XE Network Essentials

• Management Ports: 1 × RJ45 console, 1 × USB Type A, 1 × USB Type Mini

• Redundant Power Supply: Optional

• Fans: Field-replaceable, redundant fan modules

• Dimensions: 1.73″ (H) × 17.5″ (W) × 17.5″ (D)

• Weight: ~16.07 lbs (7.29 kg)

• Operating Temperature: 0°C to 40°C

• Operating Humidity: 5% to 90% (non-condensing)

• Compliance: RoHS, IEEE 802.3 standards

✅ Key Features

• High Stacking Bandwidth: StackWise-480 provides seamless scalability and redundancy.

• Flexible Uplinks: Modular uplink slots support multiple speeds and media types (10G, 25G, 40G).

• Advanced Security: Supports Cisco TrustSec, 802.1X, and advanced network segmentation.

• Energy Efficient: Optimized for reduced power consumption.

• Comprehensive Management: Compatible with Cisco DNA Center for automation and network analytics.

• Hot-Swappable Components: Redundant power and fan modules allow continuous operation.
