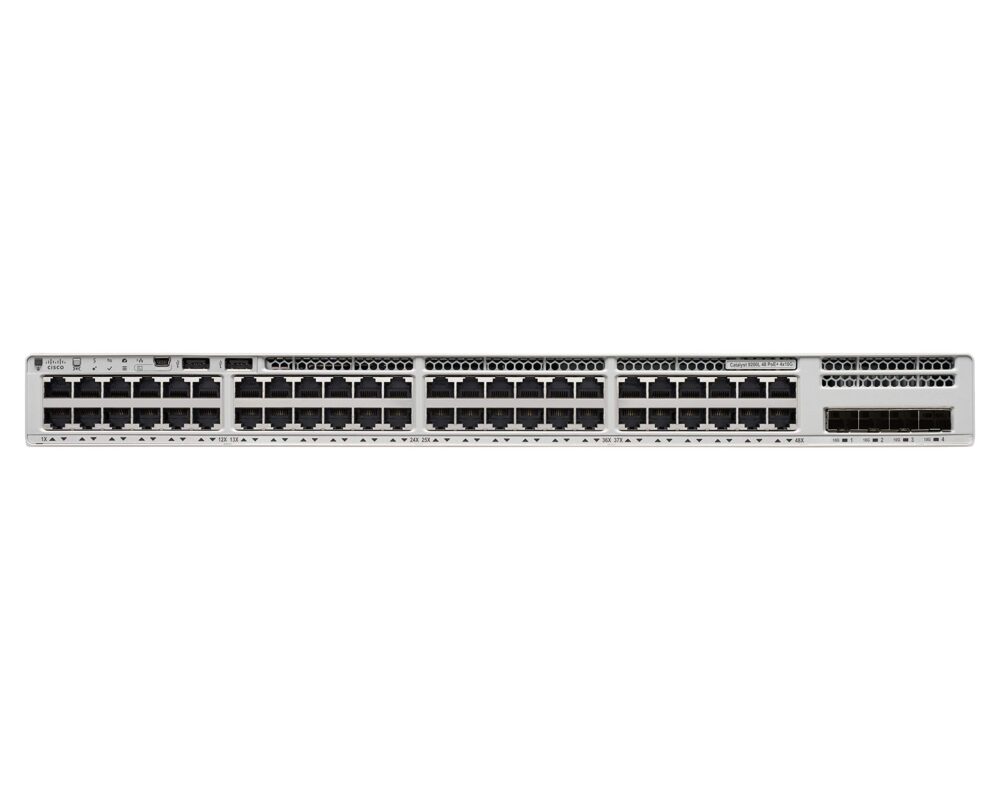

C9200L-48P-4X-ESwitches

The Cisco Catalyst C9200L-48P-4X-E is a high-performance, enterprise-class access switch that extends the power of intent-based networking to a broader set of deployments. Part of the Catalyst 9200 Series, this switch offers simplicity without compromise, ensuring secure, always-on connectivity with IT simplification.

🔧 Technical Specifications

• Ports: 48 x 10/100/1000 Ethernet ports with full PoE+ (IEEE 802.3at) support

• Uplink Ports: 4 x 10G SFP+ fixed uplink ports

• Stacking: Supports StackWise-80 technology, allowing stacking of up to 8 switches with 80 Gbps stacking bandwidth

• Power Supply: Single 1000W AC power supply (PWR-C5-1KWAC); supports redundant power supply configuration

• Cooling: Fixed redundant fans for enhanced reliability

• Software: Network Essentials software package

• Form Factor: 1RU rack-mountable

• Dimensions: 1.73 x 17.5 x 11.3 inches (4.4 x 44.5 x 28.8 cm)

• Weight: Approximately 7.27 lbs (3.3 kg)

• Environmental: Operating temperature range: 32°F to 104°F (0°C to 40°C)

• Compliance: Energy Star certified

✅ Key Features

• Full PoE+ Capability: Delivers up to 30W per port, enabling support for IP phones, wireless access points, and other PoE+ devices.

• High-Speed Uplinks: Equipped with four 10G SFP+ uplink ports to accommodate high-bandwidth requirements.

• Stacking Flexibility: Utilizes StackWise-80 technology for flexible stacking, enhancing network scalability and redundancy.

• Enhanced Security: Offers advanced security features to protect the network infrastructure.

• Simplified Management: Supports Cisco IOS XE, providing a consistent and programmable platform for network management.
