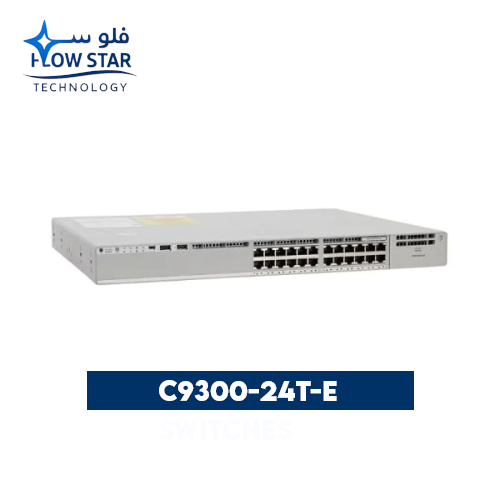

C9300-24T-ESwitches

The Cisco C9300-24T-E is a 24-port data-only Layer 3 switch from the Cisco Catalyst 9300 Series, built for enterprise campus and branch access networks that demand superior security, performance, and automation. As part of Cisco’s most popular enterprise switching platform, it offers industry-leading stackable performance, Cisco DNA Essentials licensing, and advanced Layer 3 features to simplify operations and enhance network resilience.

This model includes 24 Gigabit Ethernet data ports and modular uplink options supporting 1G, 10G, or 40G connectivity, providing the flexibility needed for growing network demands. It supports StackWise-480 technology, offering up to 480 Gbps of stack bandwidth, ensuring seamless scalability and redundancy.

Powered by Cisco IOS XE, the C9300-24T-E enables programmability, automation, and robust security features such as MACsec encryption, TrustSec, and Encrypted Traffic Analytics (ETA). Its hot-swappable redundant power supplies and fans ensure high availability and business continuity.

Ideal for enterprise networks, universities, and large organizations, this switch provides the performance, security, and intelligence required to power digital transformation.

⚙️ Technical Specifications:

• Model: Cisco C9300-24T-E

• Product Series: Cisco Catalyst 9300 Series

• Ports: 24 × 10/100/1000 (Gigabit Ethernet) data-only ports

• Uplink Modules: Modular (supports 4×1G, 4×10G, or 2×40G uplinks)

• Switching Capacity: 208 Gbps

• Forwarding Bandwidth: 154.76 Mpps

• Stacking: Cisco StackWise-480 (up to 480 Gbps)

• Power Supply: Modular, redundant options supported

• Fans: Hot-swappable and redundant

• DRAM: 8 GB

• Flash Memory: 16 GB

• Software License: Network Essentials (upgradable to DNA Advantage)

• Operating System: Cisco IOS XE

• Layer Support: Layer 2 and Layer 3

• Security Features:

  • Cisco TrustSec

  • MACsec encryption

  • Encrypted Traffic Analytics (ETA)

  • Secure Boot and image signing

• MAC Address Table: 32,000 entries

• VLAN Support: Up to 4094 VLANs

• Energy Efficiency: IEEE 802.3az Energy Efficient Ethernet

• Dimensions (H × W × D): 1.73 × 17.5 × 17.5 in (4.4 × 44.5 × 44.5 cm)

• Weight: 14.2 lbs (6.4 kg)

🔹 Key Features:

• 24 Gigabit Ethernet data ports for high-speed connectivity

• Modular uplink options for flexible network design

• StackWise-480 technology for 480 Gbps stacking bandwidth

• Cisco DNA Essentials with automation and analytics

• Advanced Layer 3 routing and security capabilities

• Hot-swappable redundant fans and power supplies

• Ideal for enterprise and campus access deployments
