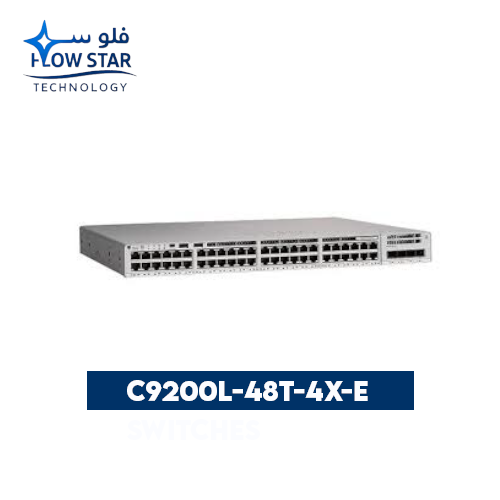

C9200L-48T-4X-ESwitches

The Cisco C9200L-48T-4X-E Catalyst 9200L Series Switch is a powerful, enterprise-class 48-port Gigabit Layer 3 managed switch designed to provide simplicity, security, and operational efficiency to enterprise campus and branch networks. As part of the next-generation Cisco Catalyst 9000 family, it delivers enterprise-grade performance with advanced automation, programmability, and robust security features — all at an affordable price point.

Equipped with 48x 10/100/1000 Ethernet ports and 4x 10G SFP+ uplink ports, the C9200L-48T-4X-E offers high-speed connectivity for workstations, servers, IoT devices, and wireless access points. It supports Cisco DNA Center and Software-Defined Access (SD-Access) for simplified network deployment, visibility, and policy-based control.

Powered by Cisco IOS XE and built on the UADP ASIC architecture, this switch provides enhanced programmability, telemetry, and security features. With integrated Layer 2 and Layer 3 services, advanced QoS, and resilient hardware, it is a future-proof solution for growing network demands.

🔧 Technical Specifications

General Features:

• Model: Cisco C9200L-48T-4X-E

• Series: Catalyst 9200L Series

• Product Type: Fixed, Managed Layer 3 Switch

• Form Factor: 1U rack-mountable

• Software Feature Set: Network Essentials

Ports & Interfaces:

• 48 x 10/100/1000 Ethernet RJ-45 ports

• 4 x 10 Gigabit SFP+ uplink ports

• Console Ports: RJ-45 and USB Type-C console

• USB 2.0 Port: For storage and image upgrades

Performance & Capacity:

• Switching Capacity: 176 Gbps

• Forwarding Rate: 130.95 Mpps

• MAC Address Table Size: 16,000 entries

• Latency: <1 μs

• DRAM: 2 GB

• Flash Memory: 4 GB

• Jumbo Frames: Up to 9198 bytes

Layer 2 / Layer 3 Features:

• Static Routing, RIP, OSPF, EIGRP, BGP

• IPv4/IPv6 Dual Stack

• Policy-Based Routing (PBR)

• VRF-Lite support

• Multicast routing (PIM, IGMP, MLD)

Security & Management:

• IEEE 802.1X, MACsec Encryption

• DHCP Snooping, Dynamic ARP Inspection

• IP Source Guard, Cisco TrustSec

• Secure Boot, SXP, and segmentation policies

• Cisco DNA Center, CLI, SNMP, and Web UI management

Power & Environmental:

• Power Supply: Built-in fixed power supply

• Power Consumption: ~80W (typical)

• Dimensions: 1.73 x 17.5 x 11.3 in (4.4 x 44.5 x 28.7 cm)

• Weight: ~12.8 lbs (5.8 kg)

• Operating Temperature: 0°C to 45°C (32°F to 113°F)

Compliance & Standards:

• IEEE 802.3ab (Gigabit Ethernet)

• IEEE 802.1Q VLAN

• IPv6 Ready, RoHS, CE, UL Certified

🌐 Use Cases

• Enterprise campus access layer

• High-speed branch office connectivity

• IoT and wireless access point aggregation

• SMB/SME edge switching solution

• Secure SD-Access deployments

✅ Key Benefits

• ⚡ High-Performance Switching: 176 Gbps capacity with 4 x 10G uplinks for reliable connectivity.

• 🔐 Advanced Security: Integrated MACsec, TrustSec, and dynamic network protection.

• 🔄 Automation & SDN-Ready: Full Cisco DNA Center and SD-Access support.

• 📈 Scalable and Efficient: Enterprise-grade Layer 3 capabilities with simplified management.

• 🛡️ Future-Proof Design: IPv6-ready, programmable, and built for evolving network demands.
