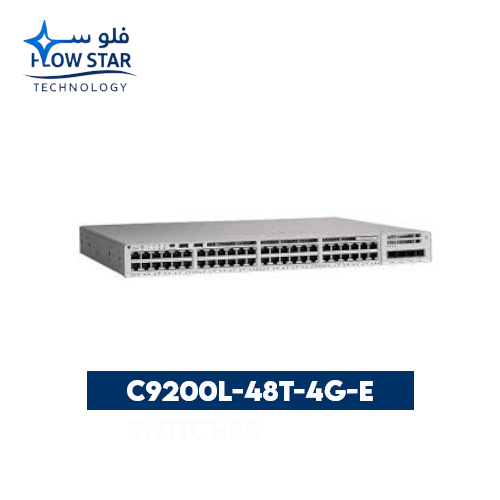

C9200L-48T-4G-ESwitches

The Cisco C9200L-48T-4G-E is a 48-port Gigabit Ethernet Layer 3 switch from the Cisco Catalyst 9200L Series, engineered to bring advanced enterprise-class capabilities to smaller networks and branch offices. This model delivers high performance, security, and simplified management, making it an ideal choice for organizations seeking reliable wired access with Cisco DNA Essentials.

With 48 data-only ports and 4 fixed Gigabit SFP uplinks, the C9200L-48T-4G-E provides flexible connectivity and uplink redundancy. It supports StackWise-160 technology, offering up to 160 Gbps stacking bandwidth for scalability and resiliency. The switch is powered by Cisco IOS XE, a modular and programmable operating system that enables automation, visibility, and security integration through Cisco DNA Center.

Built with energy efficiency, advanced security (TrustSec, MACsec), and simplified deployment, this switch ensures operational excellence while lowering total cost of ownership. Its fanless option, redundant power support, and enterprise-level reliability make it perfect for professional network environments.

⚙️ Technical Specifications:

• Model: Cisco C9200L-48T-4G-E

• Product Series: Cisco Catalyst 9200L Series

• Port Configuration: 48 × 10/100/1000 (Gigabit Ethernet) data ports

• Uplink Ports: 4 × 1G SFP fixed uplinks

• Switching Capacity: 104 Gbps

• Forwarding Rate: 77.38 Mpps

• Stacking Bandwidth: Up to 160 Gbps (Cisco StackWise-160)

• Power Supply: Internal fixed power supply (non-PoE model)

• Fans: Field-replaceable fans

• DRAM: 2 GB

• Flash Memory: 4 GB

• Software License: Network Essentials (upgradable to DNA Essentials)

• Operating System: Cisco IOS XE

• Layer Support: Layer 2 and Layer 3

• Security Features:

  • Cisco TrustSec

  • MACsec encryption (hardware-based)

  • Encrypted Traffic Analytics (ETA)

  • Secure Boot and image signing

• MAC Address Table: 32,000 entries

• VLAN Support: Up to 4094 VLANs

• Energy Efficiency: IEEE 802.3az Energy Efficient Ethernet

• Dimensions (H × W × D): 1.73 × 17.5 × 11.3 in (4.4 × 44.5 × 28.7 cm)

• Weight: 9.92 lbs (4.5 kg)

🔹 Key Features:

• 48 Gigabit Ethernet data ports with 4 × 1G SFP uplinks

• Cisco StackWise-160 for 160 Gbps stacking bandwidth

• Cisco DNA Essentials for automation and management

• Secure, energy-efficient, and scalable Layer 3 switching

• Advanced security: MACsec, TrustSec, and ETA

• Hot-swappable fans for improved availability

• Ideal for small to medium-sized enterprise networks
