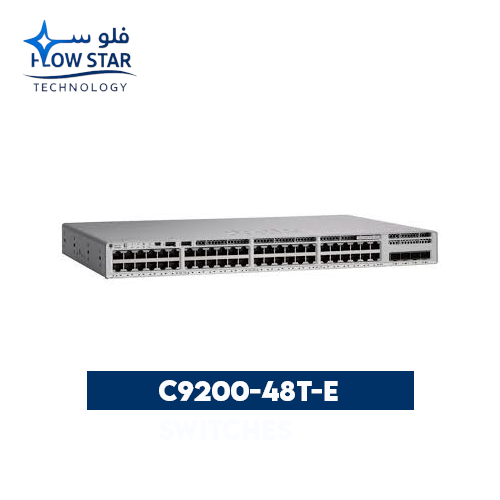

C9200-48T-ESwitches

The Cisco C9200-48T-E is a 48-Port Gigabit Layer 3 Managed Switch designed for enterprise-class access networks that demand performance, scalability, and security. As part of the Cisco Catalyst 9200 Series, it extends the power of intent-based networking to small and mid-sized businesses while maintaining the same security, resiliency, and programmability found in Cisco’s enterprise-grade switches.

With 48 x 10/100/1000 Mbps non-PoE ports, this switch is ideal for deployments where power delivery is not required, such as desktops, printers, or access uplinks. It supports modular uplink options (4 × 1G or 4 × 10G), allowing flexible expansion for network growth.

Powered by Cisco IOS XE Software, the C9200-48T-E provides automation, telemetry, and programmability via modern interfaces like NETCONF, RESTCONF, and YANG models. It supports StackWise-160, enabling up to eight switches to operate as one logical unit for simplified management, redundancy, and higher availability.

Comprehensive Layer 3 features, including static routing, RIP, OSPF, and EIGRP, provide robust network segmentation and traffic control. Enhanced security capabilities—such as MACsec-256 encryption, TrustSec, 802.1X authentication, and DHCP snooping—protect the network from unauthorized access and attacks.

Ideal for enterprise branches, educational institutions, and business networks, the Cisco C9200-48T-E delivers high-speed connectivity, resilient stacking, and advanced security in an energy-efficient, easy-to-manage form factor.

⚙️ Technical Specifications

• Model: Cisco C9200-48T-E

• Series: Catalyst 9200 Series

• Ports: 48 × 10/100/1000 Mbps Gigabit Ethernet ports (non-PoE)

• Uplink Options: Modular uplink slot (4 × 1G or 4 × 10G SFP)

• Layer Type: Layer 3 Managed

• Switching Capacity: 176 Gbps

• Forwarding Rate: 130.95 Mpps

• Stacking Support: Cisco StackWise-160 (up to 8 switches)

• CPU: Quad-core 1.4 GHz

• Memory: 2 GB DRAM

• Flash Memory: 4 GB

• VLAN Support: Up to 4094 VLANs

• QoS: Advanced traffic shaping and prioritization

• Security Features:

  • IEEE 802.1X authentication

  • Cisco TrustSec

  • MACsec-256 encryption

  • Dynamic ARP Inspection (DAI)

  • IP Source Guard

  • DHCP Snooping

• Operating System: Cisco IOS XE

• Management: CLI, Web UI, Cisco DNA Center, SNMP, NETCONF, RESTCONF

• Redundancy: Dual redundant, hot-swappable power supplies and fans

• Operating Temperature: 0°C to 45°C (32°F to 113°F)

• Dimensions (H × W × D): 1.73 × 17.5 × 13.8 in (4.4 × 44.5 × 35.1 cm)

• Weight: Approx. 4.5 kg

• Warranty: Cisco Limited Lifetime Hardware Warranty
