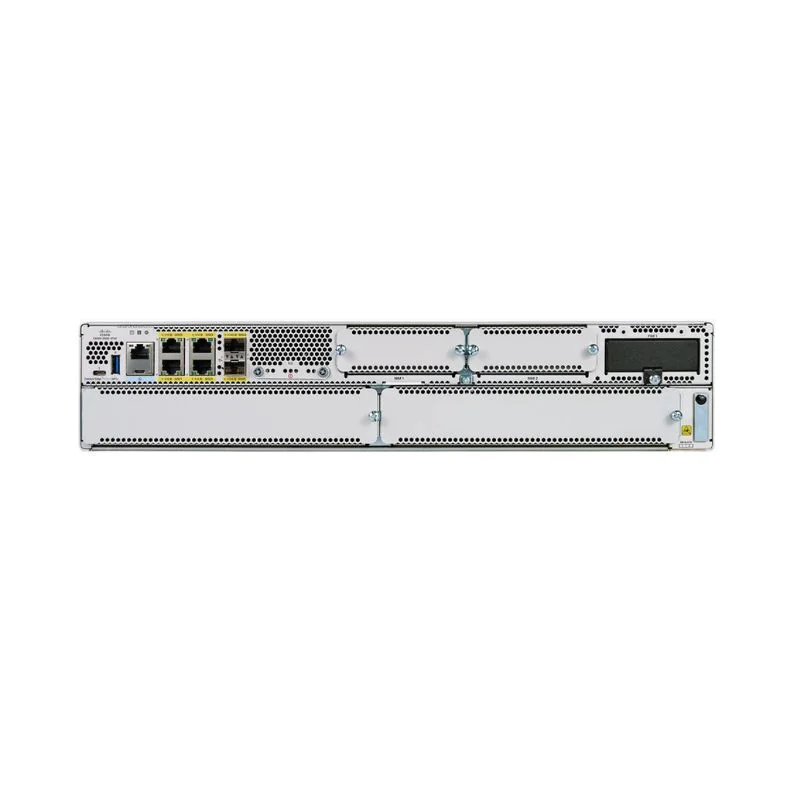

C8300-1N1S-4T2XRouter

The Cisco Catalyst C8300-1N1S-4T2X Edge Router is a next-generation enterprise SD-WAN platform designed to deliver secure, scalable, and high-performance WAN connectivity for modern branch offices and distributed networks. As part of the Cisco Catalyst 8300 Series, this router combines advanced routing, integrated security, and cloud-native capabilities to support digital transformation, hybrid work, and multi-cloud strategies.

Built for the evolving demands of the modern enterprise, the C8300-1N1S-4T2X provides high-speed WAN aggregation, secure remote connectivity, and centralized orchestration through Cisco  Manage. Its modular design and programmability make it a future-proof solution for businesses deploying SD-WAN, SASE, and cloud on-ramp architectures.

🔧 Key Technical Specifications

Performance & Hardware:

• Model: Cisco Catalyst C8300-1N1S-4T2X

• Throughput: Up to 2 Gbps (expandable with Boost license)

• Processor: Quad-core 2.4 GHz x86 CPU

• Memory: 16 GB DRAM | Storage: 16 GB eMMC (expandable via M.2 SSD)

• Form Factor: 1RU rack-mountable edge router

Interfaces & Connectivity:

• Integrated Ports:

  • 4 × 1/10G SFP/SFP+ Ethernet WAN/LAN ports

  • 2 × 10G SFP+ ports for high-speed uplinks

• Expansion:

  • 1 × NIM slot (Network Interface Module)

  • 1 × SM slot (Service Module) for security, compute, or voice services

• Console: USB-C and RJ-45 console ports

Routing & Software Features:

• OS: Cisco IOS XE – programmable, modular, and SDN-ready

• Routing Protocols: BGP, OSPF, EIGRP, RIP, IS-IS, MPLS

• SD-WAN: Native Cisco SD-WAN support with vManage orchestration

• Security: Integrated firewall, VPN, IPS, URL filtering, MACsec-256 encryption

• Virtualization: NFVIS and third-party VNFs support

Reliability & Redundancy:

• Dual power supply support (optional)

• Hot-swappable fans and power supplies

• Hardware encryption acceleration and ISSU (In-Service Software Upgrade) support

Physical Details:

• Dimensions: 1.72 x 17.5 x 13.5 in (H×W×D)

• Weight: ~15 lbs.

• Operating Temp: 0°C to 40°C (32°F to 104°F)

🌐 Ideal Use Cases

• Enterprise branch office and remote site routing

• Secure SD-WAN edge with centralized management

• Multi-cloud and SaaS on-ramp deployments

• Hybrid WAN aggregation with advanced security

With powerful performance, flexible connectivity, and integrated security, the Cisco C8300-1N1S-4T2X enables enterprises to optimize application performance, secure their WAN edge, and simplify network operations. Its modular design and full SD-WAN capabilities make it the perfect choice for organizations modernizing their branch infrastructure and embracing a cloud-first strategy.
