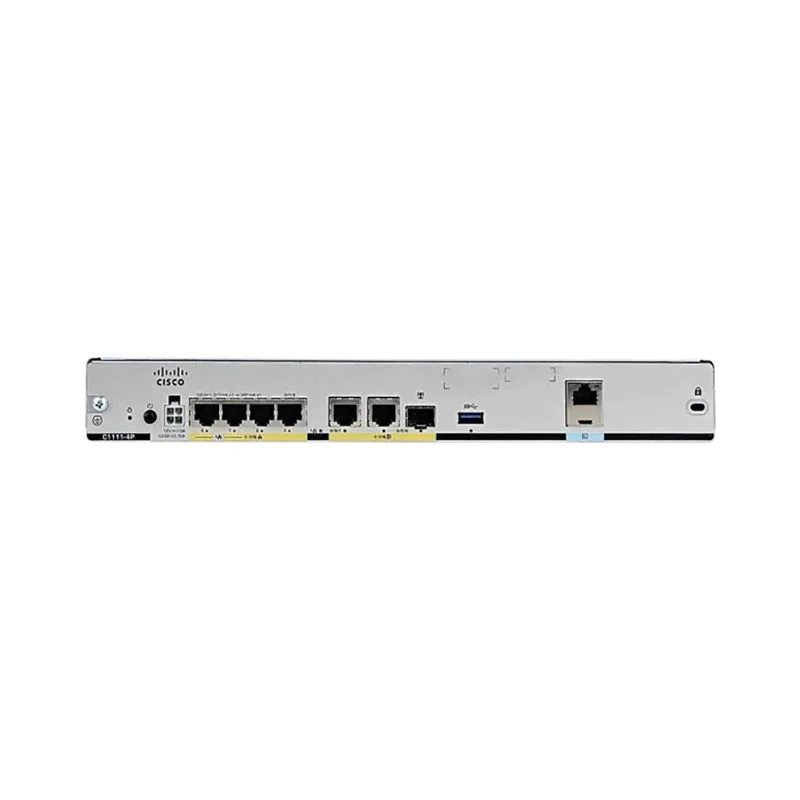

C1111-4PRouter

The Cisco C1111-4P is part of the Cisco 1000 Series Integrated Services Routers, tailored for small to medium-sized enterprise branch offices. This router combines routing, security, and wireless services in a single, high-performance device, providing a reliable and scalable solution for modern network requirements.

🔧 Technical Specifications

• Form Factor: Desktop or rack-mountable

• Ports:

  • 4 x Gigabit Ethernet (GE) RJ-45 ports

  • 2 x PoE-capable ports (1 x PoE+ and 1 x PoE)

  • 1 x Gigabit Ethernet WAN port (RJ-45/SFP combo)

  • 1 x USB 3.0 port

• Performance:

  • Encryption throughput: Up to 250 Mbps

  • Concurrent sessions: 100,000

• Memory:

  • 4 GB DRAM

  • 4 GB Flash

• Operating System: Cisco IOS XE Software

• Security Features:

  • Stateful firewall

  • VPN support (DMVPN, FlexVPN, IPsec)

  • Intrusion Prevention System (IPS)

• Management:

  • Cisco DNA Center (Autonomous Mode)

  • Cisco vManage (SD-WAN)

  • Web User Interface (WebUI)

• Power Supply:

  • AC input: 100–240 VAC, 50–60 Hz

  • Maximum output power: 66W

• Dimensions:

  • Width: 12.7 inches (32.3 cm)

  • Depth: 9.1 inches (23.1 cm)

  • Height: 1.7 inches (4.3 cm)

• Weight: Approximately 5.71 lbs (2.59 kg)

• Operating Temperature: 32°F to 149°F (0°C to 65°C)

• Relative Humidity: 5% to 95% (non-condensing)

✅ Key Features

• Dual WAN Support: Ensures high availability and load balancing for uninterrupted internet connectivity.

• Power over Ethernet (PoE): Delivers power to connected devices like IP phones and cameras, reducing the need for separate power supplies.

• Advanced Security: Provides comprehensive security features, including stateful firewall, VPN support, and intrusion prevention.

• Flexible Management: Supports various management options, including Cisco DNA Center, Cisco vManage, and WebUI, for simplified network management.

• Compact Design: Its small form factor allows for easy deployment in space-constrained environments.
