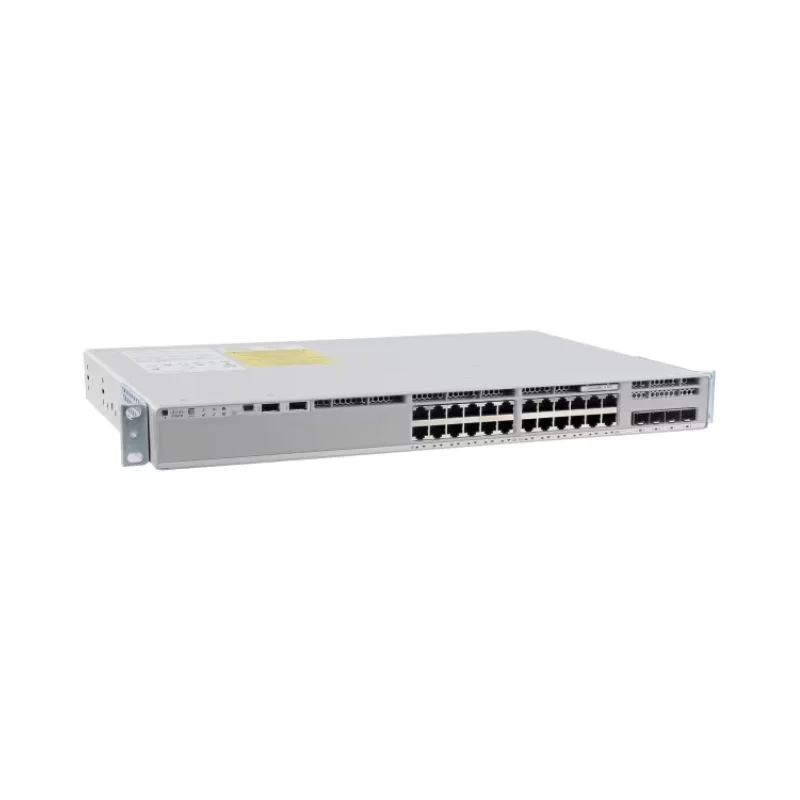

🌐 Cisco Catalyst 9200L-24P-4G-E Switch

The Cisco Catalyst 9200L-24P-4G-E is a 24-port Gigabit Ethernet PoE+ switch with 4 fixed Gigabit SFP uplinks, designed to deliver enterprise-class security, resiliency, and performance in a compact and affordable package.

It is part of the Cisco Catalyst 9200L Series, providing simplified operations, PoE+ support, and advanced security features, making it an ideal solution for branch offices, small to midsize businesses, and campus networks.

⭐ Key Features

• 24 × 10/100/1000 PoE+ ports

• 4 × 1G SFP uplink ports (fixed)

• PoE budget up to 370W for powering APs, IP phones, and IoT devices

• Switching capacity: 128 Gbps

• Forwarding rate: 95.23 Mpps

• Powered by Cisco IOS XE with programmability and automation

• Supports Cisco StackWise-80 for stacking up to 8 switches (80 Gbps stack bandwidth)

• Ships with Network Essentials license (E)

📊 Technical Specifications

Hardware

• Ports: 24 × 1G PoE+ downlink ports

• Uplinks: 4 × 1G SFP (fixed)

• Stacking: Up to 8 switches, StackWise-80 (80 Gbps)

• PoE Budget: Up to 370W

• Default Power Supply: PWR-C5-600WAC

• Fans: Fixed, redundant cooling

• Memory: 2 GB DRAM | 4 GB Flash

Performance

• Switching capacity: 128 Gbps

• Forwarding rate: 95.23 Mpps

Software & Features

• License: Network Essentials (upgradeable to Advantage)

• Layer 2: VLANs, STP, EtherChannel, LLDP, CDP

• Layer 3 (Essentials): Static routing, RIP, OSPF (1,000 routes), IPv6

• Advanced Routing (Advantage license): Full OSPF, EIGRP, BGP, IS-IS, VXLAN

• Security:

  • 802.1X, MACsec-128 encryption

  • DHCP Snooping, IP Source Guard, Dynamic ARP Inspection (DAI)

  • Control Plane Policing (CoPP)

• QoS: Hardware-based, per-port and per-queue QoS policies

• Management:

  • Cisco DNA Center, CLI, Web UI, SNMP

  • RESTCONF/NETCONF APIs

Size & Weight

• Dimensions (H × W × D): 1.73 × 17.5 × 13.8 in (4.4 × 44.5 × 35 cm)

• Weight: ~12 lbs (5.5 kg)

🚀 Why Choose the C9200L-24P-4G-E?

• Affordable Enterprise-Class Networking – ideal for small and medium businesses.

• PoE+ Support – power your IP phones, access points, and security cameras.

• Secure by Design – built-in MACsec and advanced security controls.

• Scalable Growth – StackWise-80 supports up to 8 switches.

• Always-On Reliability – redundant PSU and fans for nonstop performance.

✅ The Cisco Catalyst 9200L-24P-4G-E delivers secure, reliable, and scalable access switching at the right price point for modern enterprises.
